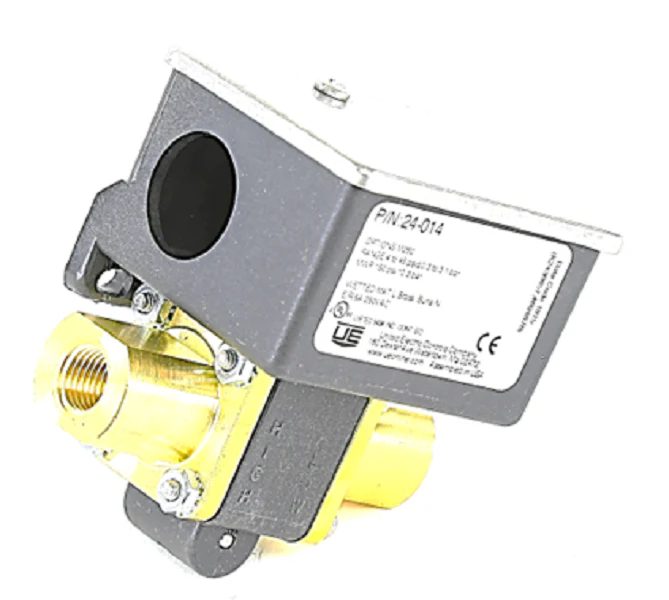

United Electric 24-014/M262 Pressure Switch
The United Electric 24-014/M262 is a professional-grade differential pressure switch designed for versatile HVAC system diagnostics and process control. Engineered with a rugged Buna-N diaphragm, this Delta-Pro series unit provides exceptional sensitivity for both air and water applications, making it a reliable choice for monitoring filter pressure drop or proving airflow in critical ductwork. This 1/4" NPT configuration features a multi-turn external adjustment screw, allowing technicians to dial in a precise adjustable pressure range between 4 and 45 PSID with a narrow 1 PSI deadband. As the direct replacement for UEC24014M262, it drops into existing terminal block setups without the need for additional mounting modifications. The NEMA 4 enclosure ensures the SPDT snap-action switch remains protected against moisture and dust in demanding mechanical rooms. With a force-balanced design, this United Electric pressure switch maintains high repeatability even in high-vibration environments, securing your commercial HVAC maintenance standards.
Key Benefits:- Application Versatility: Dual-rated for air and water systems, ideal for pump sequencing or HVAC airflow proving.
- Field Adjustability: Multi-turn external screw enables fine-tuning of the 4-45 PSID range without opening the NEMA 4 housing.
- Robust Construction: Features a durable Buna-N diaphragm and a brass pressure connection to resist process wear.
- Vibration Resistance: Force-balanced internal mechanism prevents nuisance trips in heavy industrial or high-flow settings.
- Standardized Integration: Includes a SPDT switch output compatible with 5A at 125/250 VAC for seamless control circuit wiring.
Is the 24-014/M262 suitable for liquid-level control?
Yes, its differential sensing capabilities and material compatibility make it effective for monitoring liquid levels or pressure across pumps and heat exchangers.
How do I calibrate the setpoint on this Delta-Pro model?
Technicians can adjust the setpoint using the external multi-turn screw. Clockwise rotation typically increases the pressure setting within the 4-45 PSID range.
Can this switch be used in outdoor environments?
Equipped with a NEMA 4 reinforced polyester enclosure and stainless steel cover, this unit is designed to withstand moisture and general environmental exposure common in industrial service.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
