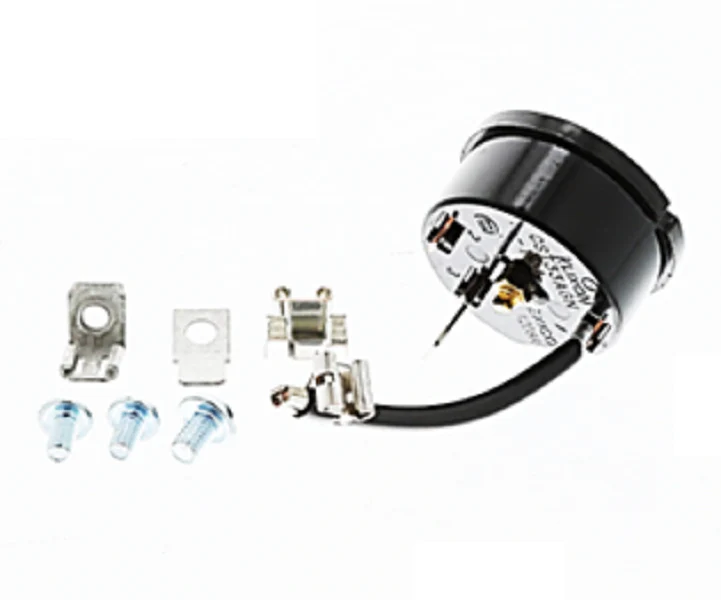

Tecumseh K90-32 Overload Relay
The Tecumseh K90-32 Overload Relay is a mission-critical protection component designed for specific Tecumseh hermetic compressors. As a professional-grade compressor motor protector, the K90-32 monitors current draw and internal temperatures to prevent winding failure during locked rotor amperage (LRA) events or sustained overcurrent conditions. This external thermal overload switch is engineered to meet precise trip curves, ensuring the motor disconnects before insulation damage occurs. For HVACR contractors performing refrigeration compressor troubleshooting, utilizing an OEM-spec thermal protector like the K90-32 is essential for maintaining the operational integrity of the cooling system. This overload relay replacement ensures compatibility with the original wiring harness and mounting clip, facilitating a fast and reliable repair. Whether you are servicing commercial reach-ins or specialized cooling equipment, verifying the HVAC overload relay specifications against the compressor model plate is the standard procedure for preventing premature system failure.
Key Technical Benefits
- Precise Thermal Calibration: Designed to react to specific temperature thresholds to prevent motor burnouts.
- OEM Direct Fit: Ensures seamless integration with Tecumseh hermetic compressors without the need for field modifications.
- Enhanced System Reliability: Acts as a primary fail-safe against power surges and mechanical stalls.
- Rapid Response Time: Engineered to trip quickly during high-amperage draws to preserve winding life.
Common Questions
How do I know if my overload relay is faulty?
Technicians should check for continuity across the terminals using a multimeter; if the relay is open while cool, the internal bimetal strip or heating element has likely failed.
Can I substitute the K90-32 with a universal overload?
While universal parts exist, they often lack the specific trip curve required for Tecumseh motors, potentially leading to inadequate protection or nuisance tripping.
What causes this part to fail repeatedly?
Repeated tripping is often a symptom of underlying issues such as a failing start capacitor, high head pressure, or worn compressor bearings increasing the current draw.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
