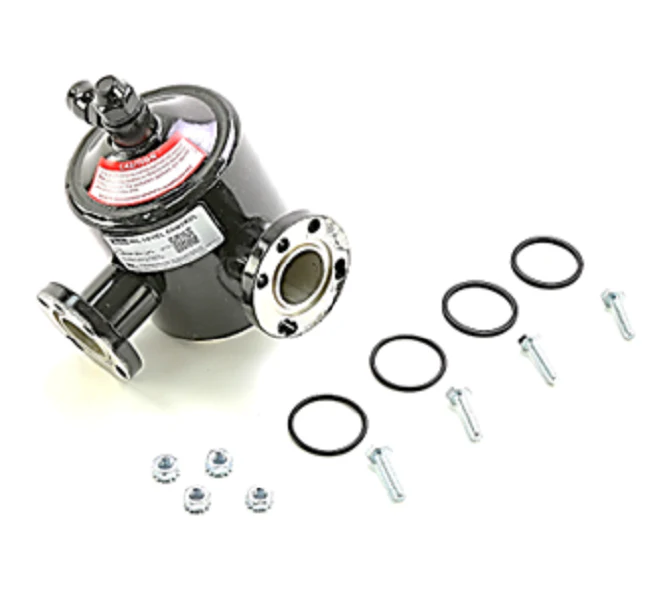

Sporlan 960074P Control
The Sporlan 960074P, also identified as the PL60XH OIL LEVEL CONTROL, is a heavy-duty mechanical float-type regulator engineered for precision oil management in multi-compressor refrigeration racks and commercial air conditioning systems. This control effectively maintains the minimum oil level in the compressor crankcase by monitoring the float position; as the level drops, it opens a needle valve to allow oil flow from the reservoir. Constructed for industrial-grade reliability, it features a 7-bolt universal flange and a short-arm two-arm design, providing extensive compressor compatibility across diverse high-pressure applications. With a maximum working pressure of 650 psi and an adjustable differential pressure range from 5 to 90 psi, this unit allows technicians to fine-tune the feed rate based on specific system requirements. The horizontal inlet and standard equalizer location at the bottom of the sight glass centerline ensure a seamless HVACR installation while preventing oil-related compressor failure.
- Precise Float Regulation: Actuates a needle valve to maintain oil levels between 1/4 and 1/2 sight glass, preventing lubrication failure.
- Universal Compatibility: The 7-bolt flange pattern and available adapters ensure a fit for most major compressor brands in refrigeration rack systems.
- High-Pressure Tolerance: Rated for a 650 psi maximum working pressure, making it suitable for modern high-pressure refrigerants.
- Field Adjustable: Features an externally adjustable setting to manage pressure differentials between 5 and 90 psi for varied load conditions.
- Durable Construction: Robust steel composition built to withstand the rigorous vibration and thermal cycling of industrial mechanical rooms.
Common Questions
How do I adjust the oil level on the PL60XH?
The level is adjusted externally to maintain the desired height within the sight glass. Typically, the Sporlan oil level control is set to maintain a level between the 1/4 and 1/2 mark, accounting for the specific pressure differential of your oil reservoir.
What causes a mechanical oil level control to fail?
Common issues include debris clogging the internal needle valve or oil filter, or a "tripped" state caused by excessive crankcase pressure. Always verify your differential pressure settings and check for system contaminants if the float is not feeding correctly.
Is this control compatible with my specific compressor?
The 960074P utilizes a universal 7-bolt flange. While it fits many standard housings, some applications may require specific Sporlan flange adapters. Confirming the bolt center and arm length is critical for a proper HVACR installation.
