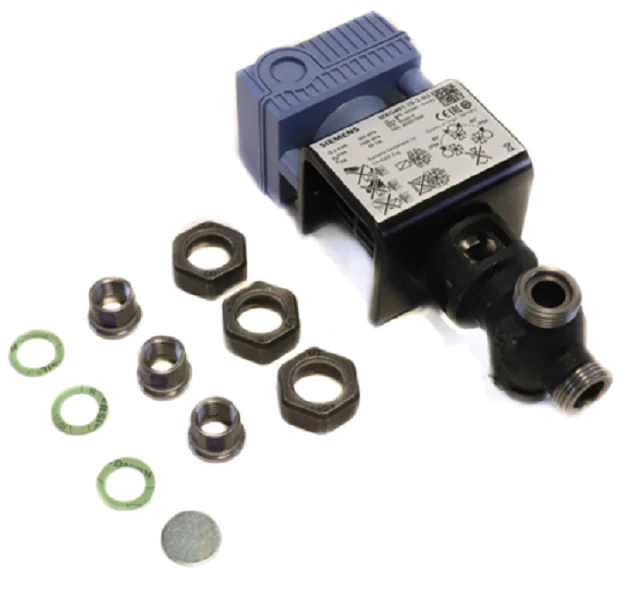

Siemens Building Technology MXG461.15-3.0U Valve
The Siemens MXG461.15-3.0U is a high-performance modulating magnetic control valve engineered for the precise regulation of chilled or low-temperature hot water in closed-loop HVAC systems. Featuring a 1/2 inch NPT connection and a 3.5 Cv flow coefficient, this valve provides a significant upgrade over traditional motorized actuators. Its magnetic actuator technology allows for an ultra-fast positioning time of less than one second, ensuring immediate response to system fluctuations and eliminating the hunting common in slower assemblies. With a 1000:1 high-resolution stroke and selectable equal-percentage or linear flow characteristics via internal dip switches, this valve delivers pinpoint control. The unit supports versatile input signals, including 0-10V DC, 2-10V DC, or 4-20 mA, and includes a built-in position feedback signal for remote monitoring. Designed with an inductive, wear-free stroke measurement system and a robust, low-friction design, it requires no routine maintenance. Perfect for high-demand applications, the assembly includes a fail-safe feature that ensures the valve (ports A to AB) closes upon loss of power.
Key Benefits for the Contractor- Ultra-Fast Response: Magnetic actuator achieves full stroke in under one second for superior loop stability.
- Versatile Configuration: Switch-selectable control signals (0-10V, 4-20mA) and flow characteristics to match any site requirement.
- Maintenance-Free Operation: Wear-free inductive measurement and low-friction internals eliminate the need for regular servicing.
- High Resolution: 1000:1 control resolution provides precise modulation in critical environments.
- Built-In Fail-Safe: Integral spring return ensures a closed position (A to AB) during power failures for system protection.
Is the Siemens MXG461.15-3.0U compatible with existing 24V controllers?
Yes, this valve operates on a standard 24V AC/DC power supply and accepts standard proportional control signals, making it an ideal drop-in replacement for legacy 1/2" modulating setups.
Can I use this valve for mixing or diverting?
The MXG461.15-3.0U is primarily designed as a mixing or straight-through valve. While it is frequently used as a 2-way valve (using the included blanking flange), it handles mixing applications with high precision due to its unique magnetic design.
What maintenance is required for the actuator?
The magnetic actuator is a solid-state, wear-free component. Unlike gear-driven actuators, there are no brushes or motors to wear out, meaning no maintenance is required under normal operating conditions.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,070.15
-65%$1,070.15
$374.55Product Information
