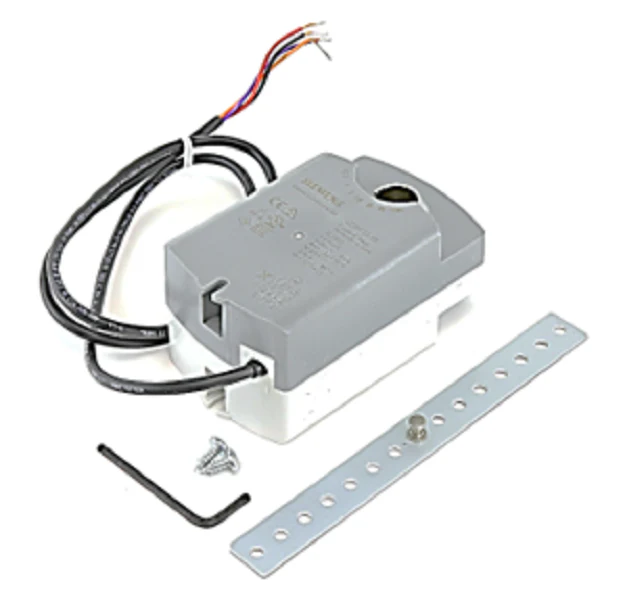

Siemens Building Technology GQD131.1P Actuator
The Siemens GQD131.1P Actuator is a compact, spring return electronic damper actuator engineered for precise floating control in commercial HVAC systems. Delivering a focused 20 lb-in torque, this 24V AC/DC unit is purpose-built for reliable performance in constant or variable air volume (VAV) installations, specifically for return air, exhaust, and residential zone dampers. With a fast 30-second run time and a 15-second spring return fail-safe, it ensures rapid response to system demands while maintaining NEMA 1 protection requirements. The plenum-rated housing and pre-cabled 3-foot leads facilitate efficient installation in tight mechanical spaces where a small footprint is non-negotiable. Designed for direct-coupled mounting, the GQD131.1P integrates seamlessly with 1/4 to 1/2-inch round or square shafts, providing a rugged solution for high-cycle applications without compromising on energy efficiency, drawing only 4 VA during operation.
Key Benefits- Fail-Safe Reliability: Mechanical spring return ensures your dampers move to a "0" position during power loss, protecting critical system components.
- Precision Control: Utilizes a floating control signal for incremental positioning, ideal for maintaining strict environmental tolerances in VAV boxes.
- Streamlined Installation: Featuring a plenum-rated cable and a direct-coupled shaft adapter, reducing labor time in HVACR field retrofits.
- Compact Power: Specifically optimized for 20 lb-in applications, offering a high torque-to-size ratio for restricted enclosure access.
Is the GQD131.1P compatible with 120V systems?
No, this specific model is designed for 24V AC/DC power supplies. For line voltage applications, a different series actuator would be required.
Does this actuator provide position feedback?
The GQD131.1P is a floating control motor without built-in electronic position feedback (0-10V); position is typically determined by the controller based on runtime.
Can I use this on a damper larger than 20 lb-in?
It is not recommended. Exceeding the 20 lb-in torque rating can lead to premature motor fatigue; always verify your damper's torque requirements before selection.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $196.59
-65%$196.59
$68.81Product Information
