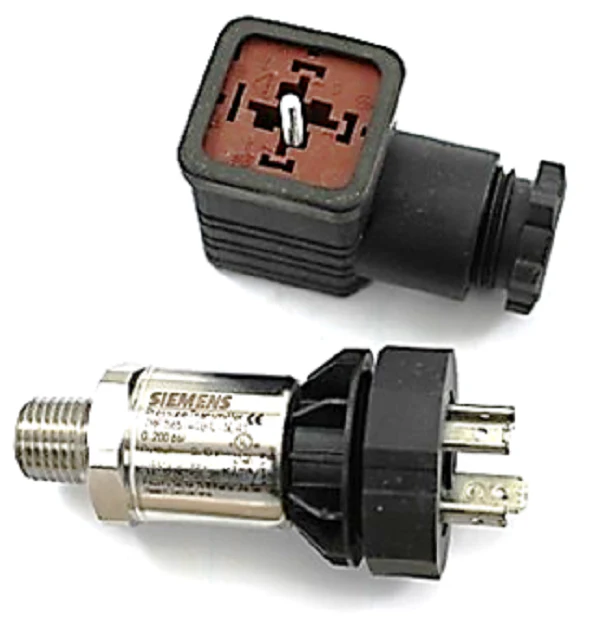

Siemens Building Technology 7MF15654CB105EA1 Sensor
The Siemens 7MF1565-4CB10-5EA1 is a professional-grade SITRANS P200 pressure transmitter designed for high-precision measurement in HVACR and industrial fluid systems. Built with a rugged stainless steel housing and a ceramic measuring cell, this 0-200 PSIG pressure sensor provides a reliable 0-10Vdc output signal that is linearly proportional to the input pressure. Engineered for both aggressive and non-aggressive media, it utilizes a piezo-resistive measuring principle to maintain 0.25% typical accuracy, even under intensive load changes or dynamic overpressures. The device features a 1/4" MNPT process connection and a terminal block electrical interface, ensuring secure integration into commercial plant controllers without the need for an integrated display. Its fully encapsulated electronics offer superior protection against humidity and temperature fluctuations, making it a staple for veteran technicians managing liquid, gas, or steam applications where industrial pressure monitoring stability is critical for system performance.
Key Benefits- SITRANS P200 Reliability: Utilizes a high-durability ceramic diaphragm that resists wear from aggressive chemical media and pressure spikes.
- High Precision Output: Delivered via a calibrated 0-10Vdc signal with a 0.25% full-scale linear accuracy range for exacting control.
- Industrial Build Quality: Features a 316L equivalent stainless steel enclosure to withstand harsh boiler room or mechanical gallery environments.
- Broad Media Compatibility: Suitable for monitoring gauge pressure in liquids, gases, and vapors within a -13°F to 185°F medium temperature range.
- Streamlined Installation: Standard 1/4" MNPT connection and terminal block design allow for rapid field replacement and wiring.
- Is this sensor compatible with non-Siemens controllers? Yes, the standard 0-10Vdc analog signal allows for seamless integration with any Building Automation System (BAS) or PLC that accepts a 3-wire voltage input.
- Can this unit handle steam applications? It is rated for vapors up to 185°F (84°C); however, for high-pressure steam, always use a pigtail syphon to protect the ceramic element from excessive temperatures.
- Does the 7MF1565-4CB10-5EA1 require a separate power supply? Yes, this 3-wire transmitter typically requires a 12 to 33 V DC auxiliary power supply to generate the 0-10V output.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $302.48
-65%$302.48
$105.87Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Siemens 7MF1565-4CB10-5EA1 is a professional-grade SITRANS P200 pressure transmitter designed for high-precision measurement in HVACR and industrial fluid systems. Built with a rugged stainless steel housing and a ceramic measuring cell, this 0-200 PSIG pressure sensor provides a reliable 0-10Vdc output signal that is linearly proportional to the input pressure. Engineered for both aggressive and non-aggressive media, it utilizes a piezo-resistive measuring principle to maintain 0.25% typical accuracy, even under intensive load changes or dynamic overpressures. The device features a 1/4" MNPT process connection and a terminal block electrical interface, ensuring secure integration into commercial plant controllers without the need for an integrated display. Its fully encapsulated electronics offer superior protection against humidity and temperature fluctuations, making it a staple for veteran technicians managing liquid, gas, or steam applications where industrial pressure monitoring stability is critical for system performance.
Key Benefits- SITRANS P200 Reliability: Utilizes a high-durability ceramic diaphragm that resists wear from aggressive chemical media and pressure spikes.
- High Precision Output: Delivered via a calibrated 0-10Vdc signal with a 0.25% full-scale linear accuracy range for exacting control.
- Industrial Build Quality: Features a 316L equivalent stainless steel enclosure to withstand harsh boiler room or mechanical gallery environments.
- Broad Media Compatibility: Suitable for monitoring gauge pressure in liquids, gases, and vapors within a -13°F to 185°F medium temperature range.
- Streamlined Installation: Standard 1/4" MNPT connection and terminal block design allow for rapid field replacement and wiring.
- Is this sensor compatible with non-Siemens controllers? Yes, the standard 0-10Vdc analog signal allows for seamless integration with any Building Automation System (BAS) or PLC that accepts a 3-wire voltage input.
- Can this unit handle steam applications? It is rated for vapors up to 185°F (84°C); however, for high-pressure steam, always use a pigtail syphon to protect the ceramic element from excessive temperatures.
- Does the 7MF1565-4CB10-5EA1 require a separate power supply? Yes, this 3-wire transmitter typically requires a 12 to 33 V DC auxiliary power supply to generate the 0-10V output.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
