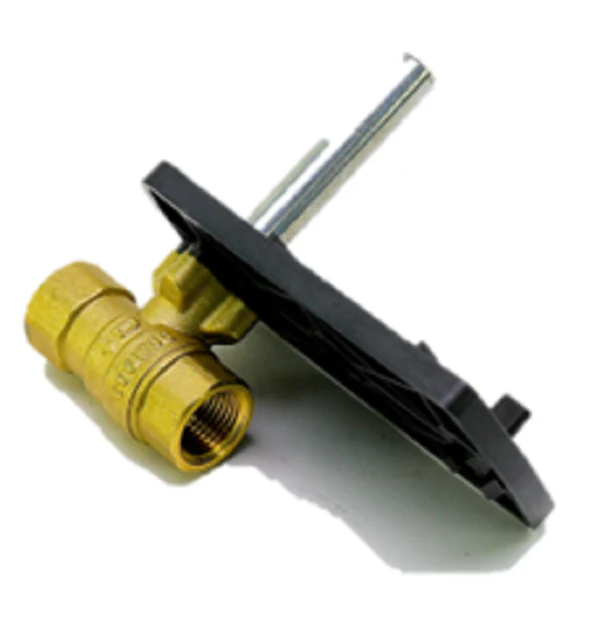

Siemens Building Technology 599-10305 Valve
The Siemens 599-10305 is a high-performance 1/2 inch 2-way ball valve engineered for precise equal percentage flow control in demanding HVACR applications. Built with a rugged forged brass body and a chrome-plated brass ball, this 1/4-turn rotary valve is optimized for hot water, chilled water, and up to 50% glycol solutions. With a 4.0 Cv coefficient and a 600 WOG/ANSI 250 pressure rating, it ensures reliable modulation in fan coil units, reheat coils, and unit conditioners. The blow-out proof stem and double O-ring seal design provide enhanced safety and leak protection under high-pressure conditions up to a 200 psi close-off. It is designed for seamless integration with Siemens OpenAir actuators, featuring a universal mounting plate and thermal standoffs to prevent condensation and protect the actuator electronics.
Key Benefits- Precise Flow Control: The glass-filled polymer flow optimizer ensures an equal percentage characteristic for stable temperature regulation.
- Enhanced Durability: Features a chrome-plated brass ball and brass stem for superior corrosion resistance in closed-loop systems.
- Universal Compatibility: The integrated standard mounting plate allows for 90-degree actuator rotation, simplifying installation in tight mechanical spaces.
- High Thermal Range: Reliable operation in media temperatures ranging from 35°F to 250°F.
- Low Maintenance: ANSI Class IV leakage rating and a maintenance-free design reduce long-term service requirements.
What actuators are compatible with the 599-10305?
This valve body is designed to couple directly with Siemens GDE, GLB, GMA, and GQD OpenAir actuators using the standard mounting kit.
Can this valve be used for steam applications?
No, the 599-10305 is specifically designed for water and glycol mixtures. For steam applications, please consult the technical datasheet for stainless steel trim alternatives.
Is manual override possible during a power failure?
Yes, when equipped with a compatible actuator or the optional manual handle, the valve can be manually positioned to maintain system flow.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
