Siemens Building Technology 599-10078 Bracket Kit

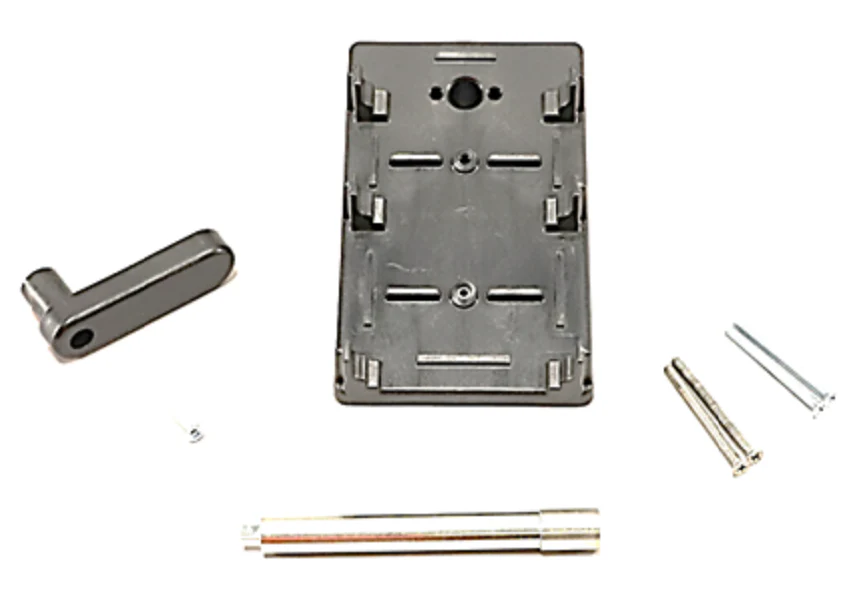

The Siemens Building Technology 599-10078 Bracket Kit is a professional-grade solution designed for the direct integration of OpenAir actuators onto 599 Series ball valves. Engineered for 2-way and 3-way configurations, this hardware provides the structural alignment necessary for high-torque applications involving GDE/GLB non-spring return or GMA/GQD spring return actuators. As a veteran-preferred HVAC valve linkage kit, it includes essential components like the bracket shaft, handle, and mounting screws (M4 x 0.7) required for vintage or current valve body configurations. Technical performance relies on precise shaft engagement to prevent hysteresis in HVAC automation systems. This Siemens 599-10078 replacement ensures full stroke travel and zero-slip mechanical coupling, making it a critical component for technicians performing field retrofits on Siemens ball valve assemblies without needing custom fabrications.
Key Benefits for the Contractor:- Multi-Actuator Compatibility: Engineered specifically to seat OpenAir GDE, GLB, GMA, and GQD series actuators without modification.
- Precise Alignment: Eliminates side-loading on the valve stem, reducing the risk of premature packing leaks and mechanical binding.
- Dual-Hardware Support: Packaged with both 50mm and 53mm M4 screws to accommodate various 599 Series casting revisions.
- Field Efficiency: Includes a manual handle and 6/32-inch screw, allowing for immediate manual override and position verification during commissioning.
Which actuators fit this bracket?
This kit is built for Siemens OpenAir models, specifically the GDE and GLB (non-spring return) and the GMA and GQD (spring return) lines.
Does it work for both 2-way and 3-way valves?
Yes, the 599-10078 is the standard bracket for the entire 599 Series ball valve range, supporting both diverting and mixing flow patterns.
What tools are required for installation?
A standard #2 Phillips screwdriver is used for the handle, while a 10mm socket or 3mm/4mm hex key is required depending on the specific actuator torque requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
