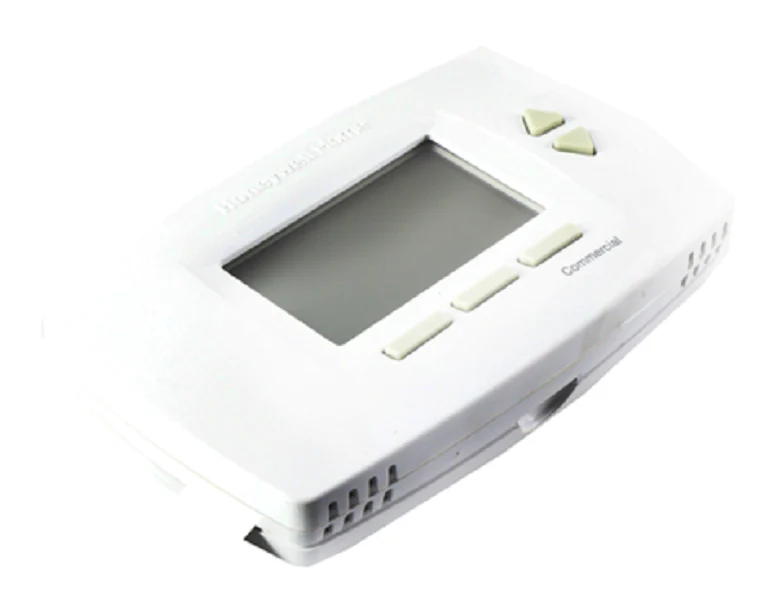

Resideo TB7220U1012 Thermostat
The Resideo TB7220U1012 is a heavy-duty CommercialPro 7000 Series Thermostat engineered for versatile HVAC system integration. This 24Vac multi-stage thermostat supports up to 2 Heat/2 Cool conventional systems and up to 3 Heat/2 Cool heat pump configurations. Its dual-power capability allows for battery operation or hardwiring via a common wire, ensuring reliability in demanding commercial environments. Technicians can configure it for 7-day programmable or non-programmable operation depending on the facility's schedule requirements. The large backlit display provides clear visibility for 40-90 degree heat settings and 50-99 degree cool settings. With features like automatic changeover and recovery evaluation, this unit maintains precise setpoints while optimizing equipment runtime. The premier white housing and intuitive interface make it a standard choice for Honeywell Home commercial thermostat upgrades where durability and technical precision are required.
Key Technical Benefits- Universal Compatibility: Works with gas, oil, electric, and heat pump systems, including auxiliary heat stages.
- Configurable Programming: Offers flexible scheduling or manual overrides to suit varied commercial occupancy patterns.
- Simplified Installation: Features a robust terminal block and standardized mounting footprint for quick field replacement.
- System Protection: Built-in compressor protection logic prevents short-cycling and extends equipment lifespan.
- Advanced Sensing: Supports optional remote indoor or outdoor temperature sensors for balanced air distribution.
How do I configure the Honeywell TB7220U1012 for a heat pump with auxiliary heat?
Access the installer setup menu and adjust Function 1 to the appropriate code for 3H/2C heat pump operation, ensuring the O/B terminal is energized correctly for your specific reversing valve.
Does the CommercialPro 7000 require a C-wire?
It is dual-powered. It can run on batteries for retrofits without a common wire or be hardwired for continuous 24Vac operation.
Can I lock the keypad to prevent unauthorized temperature adjustments?
Yes, the unit features multiple lockout levels, ranging from partial to full keypad restriction, to prevent setpoint tampering in public spaces.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
