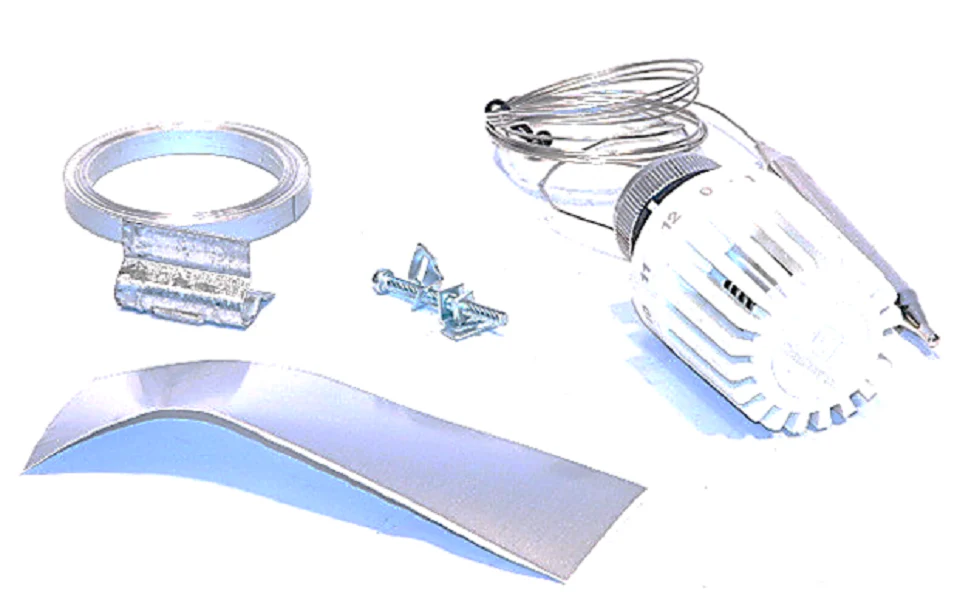

Resideo T100R1012 Operator
The Resideo T100R1012 Operator is a high-performance non-electric thermostatic actuator designed for precise hydronic temperature control. Engineered for compatibility with V135 series valves, this operator utilizes a remote bulb sensor to regulate flow based on ambient or immersion temperatures without requiring external power. With a setpoint range of 86°F to 158°F and a 5-foot capillary length, this unit is ideal for radiant heating systems, storage tanks, and domestic hot water loops where mechanical reliability is paramount. The proportional control logic ensures stable modulation, preventing the oscillations common in lower-grade actuators. For technicians, the M30 x 1.5 connection allows for straightforward installation onto the valve body. This model is particularly effective in constant-flow applications, providing a durable solution for maintaining consistent discharge temperatures in demanding HVACR environments.
Key Benefits
- Self-Powered Operation: Eliminates the need for electrical wiring or external transformers, simplifying site installation.
- High Precision Sensing: The remote vapor-filled capillary provides fast response times to temperature fluctuations.
- Industrial-Grade Build: Designed to withstand high-cycle applications in hydronic heating and cooling systems.
- Wide Temperature Range: Covering 86-158°F, it accommodates diverse commercial and residential setpoints.
- Ease of Integration: Standardized V135-compatible threads ensure seamless fitment during field replacements.
Common Questions
Does this operator require a specific valve body orientation?
The T100R1012 can be mounted in any orientation, provided the remote sensor bulb is positioned in the direct flow or sensing area where accurate readings are required.
Can I use this for domestic hot water mixing?
Yes, when paired with the appropriate Resideo mixing valve body, it is a standard choice for stabilizing domestic water temperatures.
How do I calibrate the setpoint dial?
The dial features a numerical scale corresponding to the 86-158°F range; final calibration should be verified with an inline thermometer during system commissioning.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
