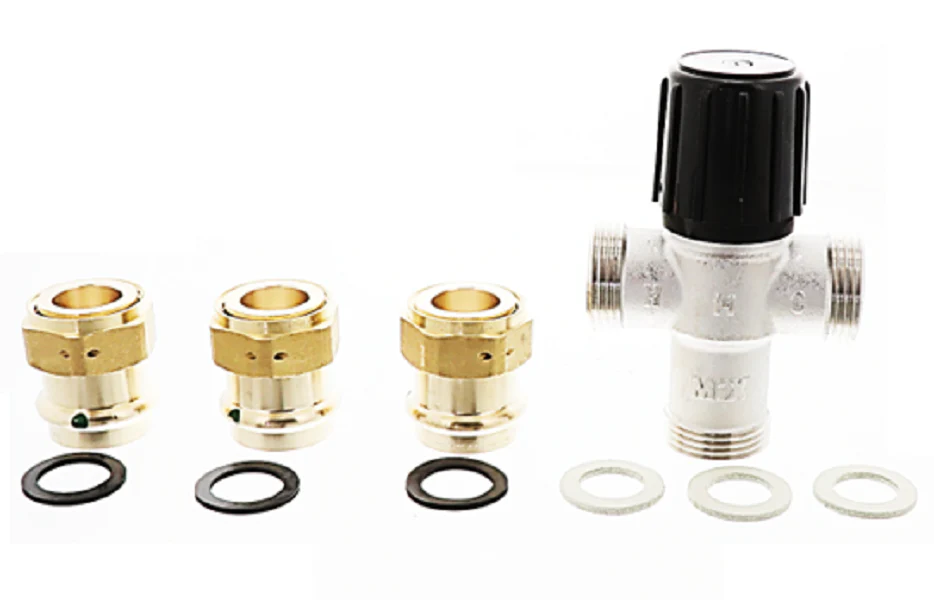

Resideo AM102R-UP-1 Valve
The Resideo AM102R-UP-1 Valve is a professional-grade 1-inch Union ProPress mixing valve engineered specifically for high-performance hydronic heating systems. As an R-model "Heating Only" proportional thermostatic valve, it features a Teflon-coated spool and body to prevent mineral buildup and scale, ensuring long-term reliability in varying water conditions. This thermostatic mixing valve provides precise temperature regulation with a 70°F to 180°F operating range and a high 3.9 Cv capacity, making it ideal for radiant floor heating and boiler loop applications. Built with nickel-plated brass and EPDM O-rings, its straight-through design simplifies piping by keeping hot and cold inlets on the same level. The lockable handwheel allows for tamper-resistant temperature settings, while the 16 GPM maximum flow rate handles demanding residential and light commercial loops without significant pressure drops. Note: This unit is not intended for potable water applications.
Key Benefits- Corrosion Resistance: Nickel-plated brass construction and Teflon-coated internal shuttle resist mineral scaling.
- Installation Efficiency: Features 1-inch ProPress union connections for rapid, solder-less installation and easy service access.
- Precise Control: Maintains a consistent mixed water temperature even under fluctuating supply conditions.
- System Protection: Rapidly reduces flow within seconds if the cold water supply is interrupted.
- Versatile Application: Optimized for radiant heating, baseboard systems, and space heating loops.
Is the AM102R-UP-1 suitable for domestic hot water?
No, the "R" model is strictly for heating only applications. For potable water or anti-scald domestic systems, a lead-free "LF" model certified to ASSE 1017/1070 is required.
What is the maximum inlet temperature?
The valve is designed to handle maximum hot water inlet temperatures up to 212°F, facilitating use with high-temperature boiler systems.
Does it require a specific mounting orientation?
This proportional mixing valve features a straight-through design and can generally be installed in any position, provided there is access for future maintenance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
