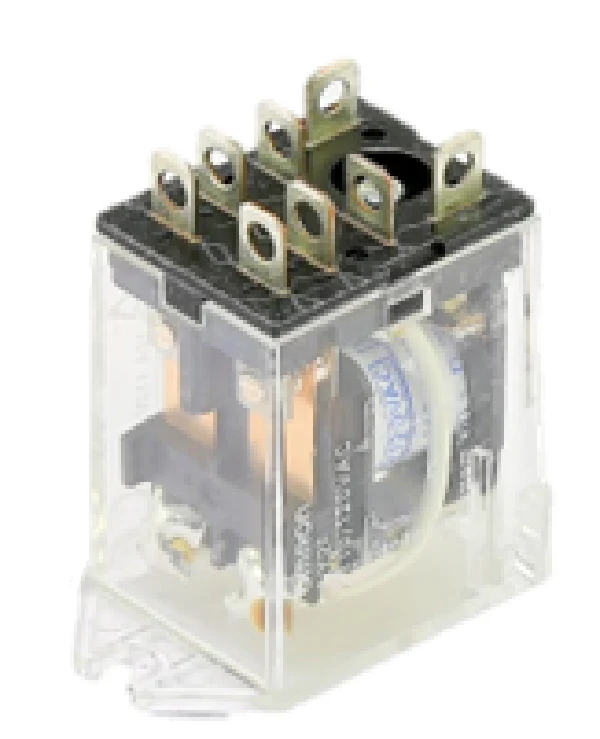

Omron LY2F-AC110/120 Relay
For industrial control and HVACR applications requiring reliable power switching, the Omron LY2F-AC110/120 Relay is a professional-grade DPDT general purpose relay designed for demanding environments. This 110-120Vac power relay features a 10A contact rating and is built with high-quality silver alloy contacts to ensure long-term conductivity and minimize resistance in high-cycle thermal applications. The "F" designation indicates a top bracket mounting configuration, specifically engineered for secure surface mount or panel attachment without the need for a separate socket, making it an ideal choice for compact control cabinets. Equipped with a built-in arc barrier, this 8-pin electromechanical relay effectively prevents flashover between poles, maintaining system integrity even under significant electrical loads.
Key Benefits for Technicians:- Dual Pole Double Throw (DPDT) configuration provides versatile circuit control for simultaneous switching of independent loads.
- Integrated Flange Mounting allows for direct attachment to panels, saving space and reducing installation hardware.
- High Dielectric Strength of 2,000 VAC protects sensitive downstream components from voltage surges.
- Plug-in and Solder Terminals offer flexible wiring options for both field repairs and permanent shop installations.
- Ag-Alloy Contacts are optimized for 120V AC coil operation, providing superior endurance in HVACR motor and fan control circuits.
Can the LY2F-AC110/120 be used with a standard 8-pin socket?
While the pin layout is compatible with standard sockets, the "F" model includes an integrated upper mounting bracket designed for direct surface mounting. For socket-specific applications, the standard LY2-AC110/120 is typically preferred.
What is the maximum ambient temperature for this relay?
This relay is rated for operation between -25°C and +55°C, making it suitable for most mechanical rooms and industrial enclosures.
Are these relays suitable for switching inductive loads like motors?
Yes, the 10A rating and built-in arc barriers make the Omron LY2 series highly effective for handling the inrush currents typical of small motors, solenoids, and contactor coils.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
