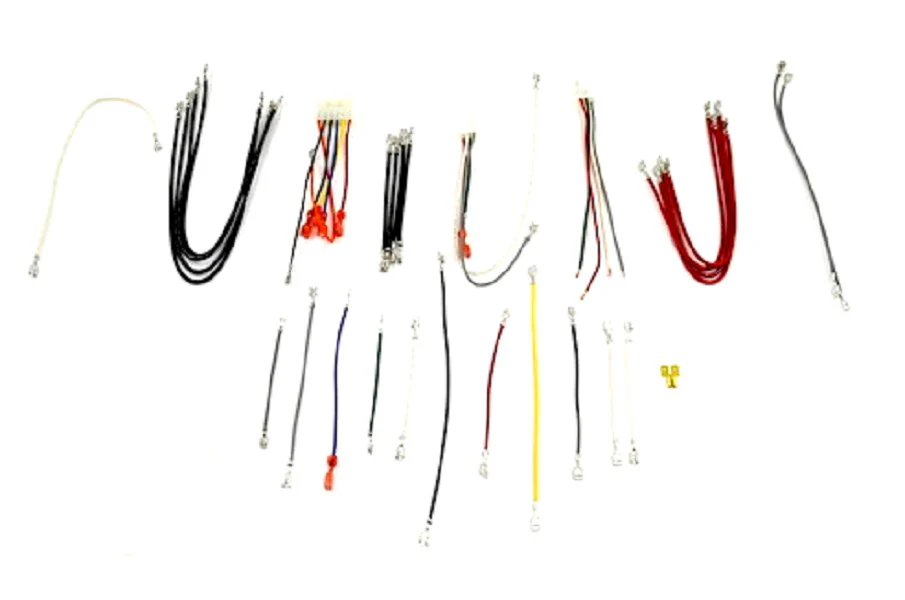

Nordyne D12581R Wiring Harness
The Nordyne D12581R Wiring Harness is a critical OEM replacement component engineered for high-continuity electrical interfacing within E2EB Series electric furnaces. As a veteran-grade HVAC wiring harness, this assembly facilitates the heavy-duty connections between the heating element sequencers, blower relays, and the integrated control board. Designed to maintain the integrity of the 24V control circuit and the high-voltage distribution, the Nordyne D12581R ensures that signal timing for staged heating elements remains precise, preventing premature contact wear or sequencer failure. This E2EB furnace wire assembly features factory-terminated connectors and high-temp insulation, eliminating the risk of field-wiring errors and high-resistance joints common with universal pigtails. When servicing electric furnace electrical parts, utilizing this genuine OEM furnace wiring is essential for maintaining the UL listing of the equipment and ensuring consistent amperage draw across all heating banks during peak winter demand cycles.
Key Benefits- Precision Compatibility: Specifically designed for the E2EB series to ensure a plug-and-play fit without modifying the factory cabinetry or harness stay.
- Vibration Resistance: Heavy-duty terminal crimping prevents wire fatigue and loose connections caused by standard induction motor harmonics.
- Optimized Conductivity: Engineered to handle the specific amperage loads of multi-stage electric heating elements without thermal degradation.
- Simplified Diagnostics: Standardized color-coding matches the Nordyne E2EB wiring diagram, streamlining troubleshooting for field technicians.
Is the D12581R harness compatible with the E2EH series?
While the E2EB and E2EH share the E2 platform, the D12581R is specialized for the multi-speed blower and relay configurations found in the E2EB air-conditioning ready models. Always verify your specific model revision (e.g., E2EB-015HB) before installation.
Does this harness include the sequencer connectors?
Yes, this replacement wiring harness provides the necessary leads to interface with the heating element sequencers and the 240V power block, ensuring the proper sequence of operation for the heat banks.
Can I use this for mobile home furnace repairs?
Yes, the Nordyne D12581R is a standard component for many manufactured housing applications utilizing the Intertherm or Miller E2EB electric furnace platforms.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
