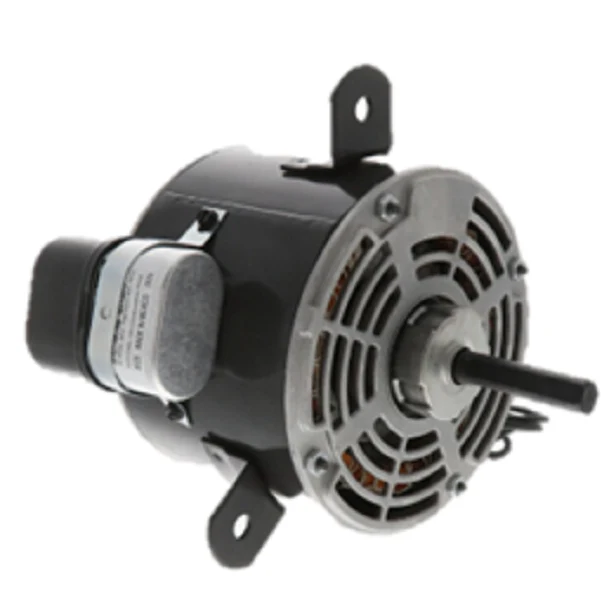

Nidec-US Motors 8330 Condenser Motor

The Nidec-US Motors 8330 is a heavy-duty, 1/4 HP HVAC condenser fan motor engineered for reliable performance in residential and light commercial outdoor units. This Permanent Split Capacitor (PSC) motor operates at 230V, single-phase, delivering a consistent 1350 RPM to ensure optimal heat exchange across the coils. Built on a 48Y NEMA frame, it features an open enclosure design for maximum airflow and cooling of the internal windings. Drawing 1.9 Amps, the 8330 utilizes a Sleeve Bearing (SAB) system to manage operational friction while maintaining a quiet profile. The bracket mount configuration allows for direct integration into existing fan housings, making it a standard OEM replacement motor for contractors focusing on restoring system static pressure and CFM requirements. This unit is designed for continuous duty cycles in high-ambient environments where thermal overload protection and efficient power factor performance are critical for maintaining compressor longevity.

• NEMA 48Y Frame: Standardized dimensions ensure straightforward bracket mounting and shaft alignment in most condenser housings.
• 1350 RPM Performance: Engineered to match factory blade pitches for precise airflow management and efficient heat rejection.
• Sleeve Bearing System: Provides reliable, low-noise operation suitable for sensitive residential installations.
• PSC Design: Highly efficient electrical operation with a 1.9 Amp draw, reducing overall energy consumption and heat generation.

Common Questions

Is the Nidec 8330 a suitable replacement for a 1/4 HP 1075 RPM motor?
No. While the horsepower matches, the 1350 RPM speed is significantly higher. Using a higher RPM motor on a blade designed for lower speeds can lead to amp draw spikes, motor overheating, and potential blade failure.

What capacitor is required for this condenser motor?
As a Permanent Split Capacitor motor, it requires a specific microfarad (MFD) rating determined by the manufacturer; always verify the run capacitor rating on the nameplate to ensure proper torque and thermal protection.

Can this motor be used in totally enclosed applications?
The 8330 features an Open Air Over (OAO) enclosure. It relies on the fan's airflow to cool the motor windings and should not be used in applications where airflow is restricted or internal components are exposed to heavy falling debris.
