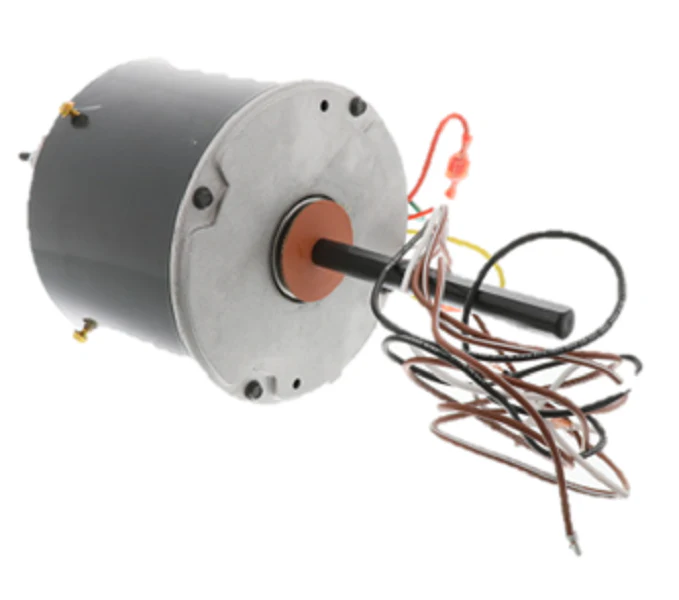

Nidec-US Motors 3322 Motor
Ensure reliable condenser performance with the Nidec-US Motors 3322 Motor, a versatile 1/3 HP condenser fan motor engineered for demanding HVACR environments. This 1075 RPM replacement motor features a TEAO (Totally Enclosed Air Over) enclosure, making it ideal for residential and commercial outdoor units where protection from moisture and debris is critical. Operating at 208-230V, this PSC (Permanent Split Capacitor) motor is designed for continuous duty and is compatible with a 10 MFD 370V capacitor. Its 48Y frame and multi-horsepower design (1/3 - 1/6 HP) allow it to serve as a high-efficiency universal replacement HVAC motor. Built with ball bearings and an all-angle mounting system, it simplifies installations in various orientations. The reversible rotation and automatic thermal overload protection ensure this Nidec condenser motor provides stable, long-term operation under high ambient temperatures up to 60°C.
Key Benefits- Universal Compatibility: Multi-horsepower rating allows one motor to replace 1/3, 1/4, 1/5, or 1/6 HP applications.
- Weather-Resistant Design: The TEAO enclosure prevents environmental contaminants from entering the motor windings.
- Flexible Installation: Features reversible rotation and all-angle mounting for seamless bolt-in replacement.
- Thermal Protection: Integrated automatic reset thermal overload prevents winding failure during extreme conditions.
- Durable Construction: High-grade ball bearings and Class B insulation support continuous operation in high-heat environments.
What capacitor is required for the US Motors 3322?
This motor typically requires a 10 MFD / 370 VAC capacitor for peak performance and starting torque.
Can this motor be mounted in any position?
Yes, the Nidec 3322 utilizes an all-angle thrust system and ball bearings, allowing for horizontal, vertical shaft-up, or vertical shaft-down mounting.
Is the rotation reversible in the field?
Yes, the lead configuration allows for easy CW/CCW rotation changes to match the original equipment's fan blade pitch.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
