Nidec-Embraco EMIS70HHR1 Compressor

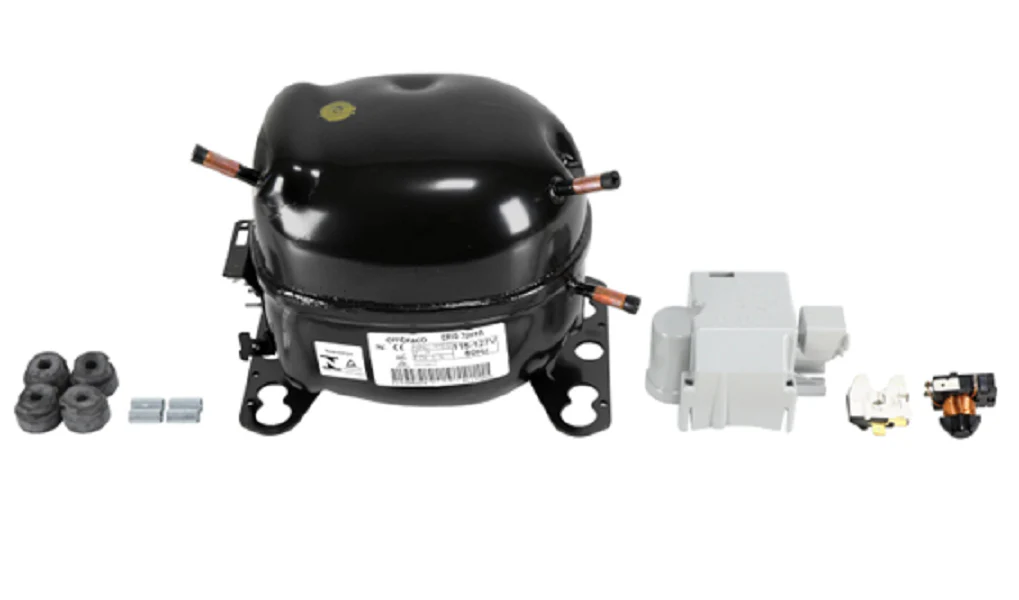

The Nidec-Embraco EMIS70HHR1 is a high-performance hermetic refrigeration compressor engineered specifically for technical reliability in 115V single-phase applications. Designed for use with R134a refrigerant, this 1/5 HP compressor is a critical component for technicians servicing light commercial reach-ins, beverage coolers, and residential refrigeration units. The motor provides a robust 700 BTU/h capacity at a -10°F evaporating temperature, making it an ideal drop-in replacement where high-torque performance is required in a standard footprint. This unit comes equipped with a dedicated overload protector (Part #: 513634015) to manage thermal stress during heavy-load cycles. When performing a field replacement, ensure your vacuum pull and filter drier installation meet OEM standards to maintain system integrity. The compact frame allows for versatile integration in tight machine compartments without compromising heat rejection or mechanical efficiency.
Key Benefits for Technicians:
- OEM-Grade Reliability: Built by Nidec-Embraco to provide consistent 700 BTU cooling capacity for low-to-medium temperature applications.
- Efficient Thermal Management: High-efficiency motor design reduces heat signature and amperage draw on 115v 1ph circuits.
- Direct Compatibility: Standard mounting base and factory-included overload protector simplify R134a compressor replacement.
- Quiet Operation: Internal dampening components minimize vibration transmission throughout the refrigeration cabinet.
Common Questions:
What refrigerant and oil are required for the EMIS70HHR1?
This compressor is specifically designed for R134a refrigerant and generally comes pre-charged with Polyolester (POE) oil. Always verify the oil type on the nameplate before adding or changing lubricants.
Is the overload protector included for field installation?
Yes, this model includes the 513634015 overload protector to ensure the motor is shielded from overcurrent or high-temperature scenarios during the start-up phase.
Can this unit replace other 1/5 HP compressors?
The Embraco EMIS70HHR1 is highly compatible with most 1/5 HP 115V systems, provided the BTU ratings and suction/discharge line sizes match your current configuration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
