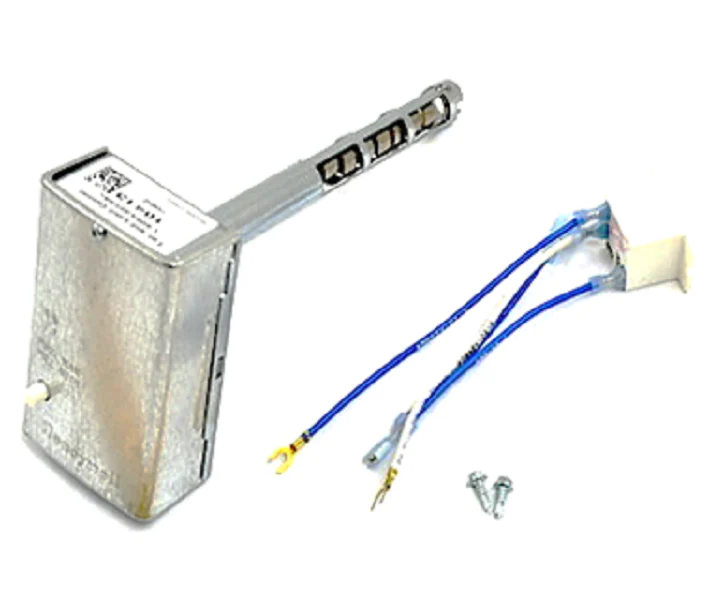

Heil Quaker ICP B04273 Switch Kit
For HVAC service professionals managing older Heil, Quaker, or ICP furnaces, the Heil Quaker ICP B04273 Fan/Limit Switch Kit is a direct OEM replacement designed to restore precise thermal control. This 8-inch insertion furnace fan limit control features a bi-metal helical element that reacts to heat exchanger temperature changes, managing the blower motor cycles and providing critical high-limit safety shut-off. This Heil Quaker furnace part is essential for preventing overheating and ensuring the blower fan activates at the correct fan on/off setpoints. The kit includes the necessary hardware for a field-ready swap, allowing technicians to maintain system efficiency and safety standards on ICP forced air furnaces. Its robust construction resists the high-heat environment of the plenum, preventing premature thermal switch failure. When diagnosing a furnace limit switch tripping or a blower motor that won't engage, this factory-authorized kit provides the reliable mechanical sensing required for vintage and late-model ICP equipment.
Key Benefits:
- OEM Compatibility: Specifically engineered for Heil, Quaker, and International Comfort Products (ICP) equipment to ensure exact electrical and physical fit.
- Precise Thermal Sensing: The 8-inch probe offers accurate high-limit protection by sensing real-time heat exchanger temperatures.
- Blower Control Efficiency: Optimizes blower start and stop times to maximize airflow comfort and seasonal efficiency.
- Durable Construction: Built to withstand constant thermal cycling without drift in the cut-in or cut-out temperature settings.
Common Questions:
What are the symptoms of a faulty B04273 limit switch?
Common indicators include a blower motor that runs continuously, a furnace that short cycles on high-limit, or a fan that fails to engage after the burners ignite.
Is this a universal fan/limit control?
No, this is a direct OEM replacement part for specific ICP and Heil Quaker models requiring an 8-inch insertion depth. Verify your model number before installation.
How do I test the B04273 limit switch?
Technicians should check for continuity across the limit terminals during a cool state and verify that the switch opens when reaching the designated high-limit temperature setpoint.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
