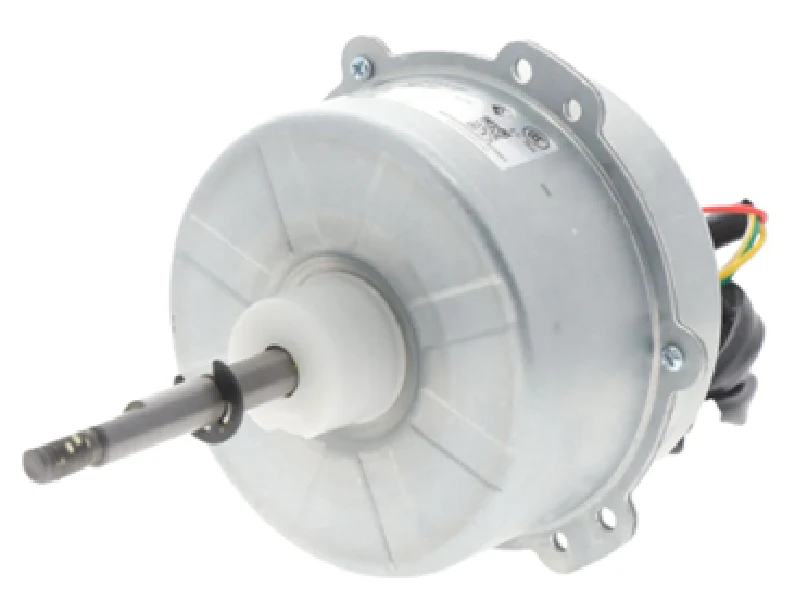

Heil Quaker ICP 15010400000102 Fan Motor
The Heil Quaker ICP 15010400000102 Fan Motor is a high-performance direct drive motor engineered for specific HVAC unit applications requiring precise airflow and thermal management. Operating at 230V with a 1/4 HP output, this condenser fan motor is a critical component for restoring system efficiency in ICP, Heil, and Tempstar equipment. This OEM replacement motor features a high-grade ball bearing system designed for vertical or horizontal mounting, ensuring long-term reliability under high static pressure conditions. With a rated speed of 1075 RPM and PSC (Permanent Split Capacitor) circuitry, it delivers consistent torque while maintaining lower amperage draw. Technicians should verify the 5.0 MFD/370V capacitor requirement and shaft dimensions (typically 1/2 inch) to ensure a drop-in HVAC motor replacement. This motor is built to withstand the rigors of continuous outdoor operation, mitigating vibration and operational noise in residential and light commercial condensers.
- OEM Compatibility: Precision-matched for ICP/Heil Quaker platforms, ensuring correct wiring harness alignment and mounting bolt patterns.
- Enhanced Thermal Protection: Integrated internal overload protection prevents winding failure during voltage fluctuations or high-ambient heat cycles.
- Efficient Performance: PSC motor technology optimizes electrical consumption while maintaining the rated RPM under load.
- Industrial Build Quality: Features moisture-resistant windings and a robust frame to prevent corrosion in harsh outdoor environments.
Common Questions
What capacitor is required for the ICP 15010400000102?
This motor typically requires a 5 MFD 370V run capacitor. Always check the nameplate on the specific motor received to confirm the capacitance rating before installation.
Can this motor replace a higher horsepower fan motor?
No, you should never downsize horsepower. If your existing condenser motor is rated at 1/3 HP or higher, this 1/4 HP unit will overheat and fail prematurely.
Is this a multi-speed or single-speed motor?
The 15010400000102 is a single-speed motor designed for direct-drive condenser fan applications where constant RPM is necessary for heat rejection.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
