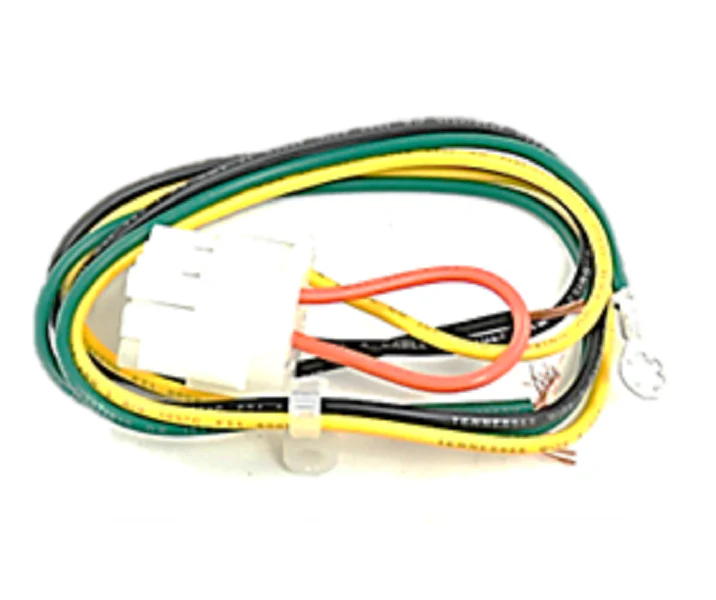

Heil Quaker ICP 1084929 Wiring Harness
The Heil Quaker ICP 1084929 Wiring Harness is a critical 12-pin Molex connector assembly designed for seamless integration within ICP, Heil, and Tempstar furnace control systems. This HVAC replacement wiring harness facilitates precise low-voltage signal transmission between the integrated furnace control board and peripheral components like the inducer motor or pressure switches. Engineered to meet strict OEM specifications, this 12-pin plug harness ensures a secure, vibration-resistant connection, preventing intermittent signal loss common in aging residential heating units. For contractors performing a furnace control board overhaul, utilizing this genuine OEM furnace wiring kit guarantees pin-to-pin alignment and color-coded wire matching, significantly reducing diagnostic time during field repairs. This harness is rated for high-temperature environments within the cabinet, maintaining insulation integrity against heat cycles to prevent brittle wire failure. Accurate ICP furnace parts identification is essential; always verify the pin configuration and terminal housing against your specific model's schematic to ensure electrical compatibility.
Key Technical Benefits
- 12-Pin Configuration: Provides dedicated circuits for multi-stage heating components and safety limit strings.
- OEM Connector Precision: Ensures a snug fit into the integrated furnace control (IFC) header, preventing arcing or loose terminal connections.
- High-Temperature Insulation: Designed to withstand the ambient heat of the blower compartment without degrading.
- Color-Coded Leads: Matches factory wiring diagrams for faster troubleshooting and error-free installation.
Common Technical Questions
Will this harness fit any ICP furnace?
This 12-pin harness is model-specific. You must cross-reference your furnace model number with the parts manual to confirm the internal pinout matches the 1084929 specification.
Does this include the pins and the housing?
Yes, this is a complete pre-terminated wiring assembly including the 12-pin housing and pre-crimped wire leads.
How do I troubleshoot a faulty furnace wiring harness?
Perform a continuity test acrossEach lead while gently flexing the wire. If you find intermittent resistance or visible signs of thermal damage at the pin terminals, the harness requires replacement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $90.32
-65%$90.32
$31.61Product Information
