Heatcraft Refrigeration 22529602 Transformer

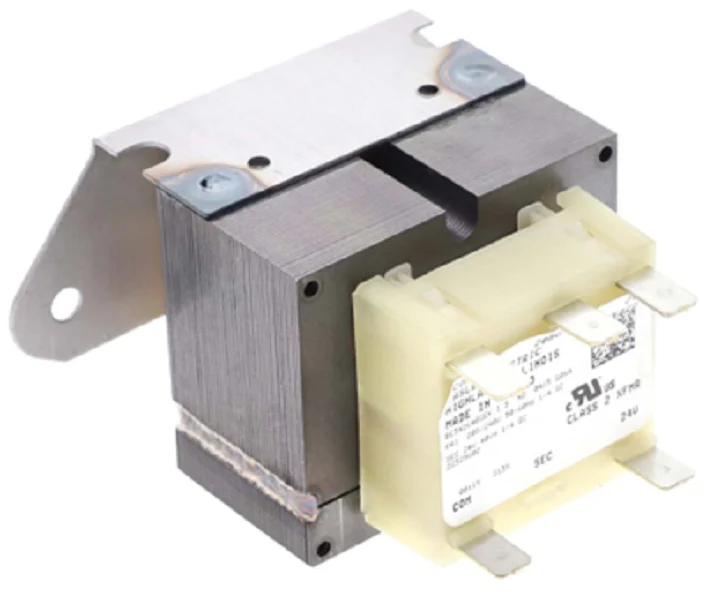

For veteran technicians and commercial refrigeration contractors, the Heatcraft Refrigeration 22529602 Transformer is a critical OEM replacement part designed for high-demand environments. This step-down transformer manages a primary voltage of 208-230V and provides a stable 24V AC secondary output, essential for powering HVACR control circuits, contactors, and solenoids. Rated at 40VA and operating at 50/60Hz, it features standard quick-connect terminals for efficient field wiring and reduced downtime. Constructed with a robust iron core, this Interlink branded transformer ensures reliable signal induction across the 2:40 turns ratio. Whether you are servicing a walk-in cooler or a reach-in evaporator, using a genuine Heatcraft 22529602 maintains the integrity of the original equipment specifications and safeguards system performance against the electrical imbalances and failures often associated with generic alternatives.
Key Benefits- Precision Voltage Regulation: Efficiently converts 208-230V/24V to ensure sensitive control boards and coils receive consistent power.
- Industrial Build Quality: High-grade 40VA transformer designed to withstand the vibration and thermal cycles typical of refrigeration systems.
- Seamless Integration: Features quick-connect spade terminals that match original Heatcraft and Bohn equipment configurations for faster installation.
- Broad Compatibility: Universally applicable across various Heatcraft, Bohn, and Chandler refrigeration units requiring a 24V control circuit.
How do I troubleshoot a 22529602 transformer with a multimeter?
First, verify 208-230VAC at the primary terminals. If the primary voltage is present but there is no 24VAC at the secondary terminals, check for a blown fuse or continuity across the windings. An "open" reading indicates a failed internal coil.
What are the symptoms of a failing HVACR control transformer?
Common signs include a dead control board (no lights), contactors failing to pull in, a distinct burning smell from the electrical cabinet, or visible dark spots on the low-voltage side of the iron core.
Can I use a 120V transformer as a substitute for the 22529602?
No. This unit is specifically engineered for 208-230V primary lines. Installing a transformer with the wrong primary voltage rating will lead to immediate component failure and potential damage to the control circuit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
