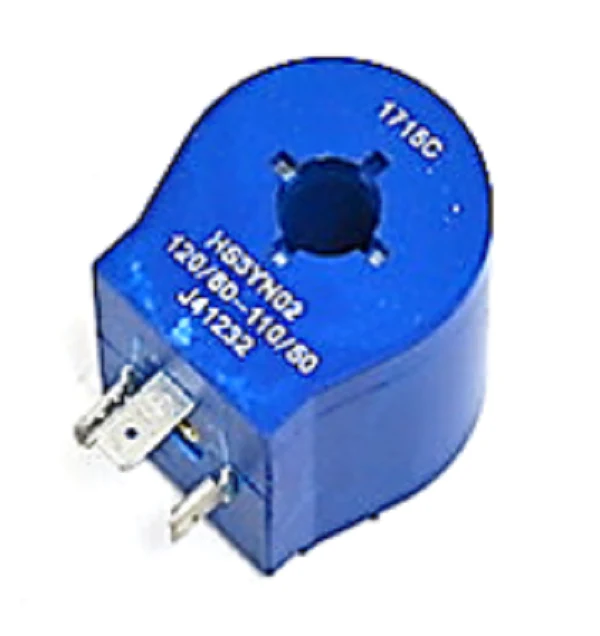

GC Valves HS3YN02 Coil

The GC Valves HS3YN02 coil is an industrial-grade 120V AC solenoid coil designed for high-cycle reliability in HVACR and fluid control systems. This DIN 43650 Form A coil features a Class H insulation rating, providing robust thermal resistance for continuous-duty applications where ambient temperatures or high-pressure steam loads are factors. Engineered for compatibility with the S3-series solenoid valves, the HS3YN02 ensures precise armature actuation and consistent pull-force profiles. The encapsulated molded construction offers superior moisture resistance and protection against environmental contaminants. When replacing a failed 120V DIN coil, verify the port size and pressure rating of the existing GC Valves body to ensure optimal flow coefficients (Cv). This coil is a standard replacement part that integrates seamlessly with existing DIN connectors, facilitating fast field swaps and minimizing system downtime during critical maintenance cycles.

Key Performance Benefits

• Universal DIN 43650 Form A Connection: Simplifies wiring and ensures compatibility with standard electrical connectors.
• 120V 60Hz Electrical Rating: Optimized for standard North American power grids with stable power consumption during hold cycles.
• High Thermal Stability: Formulated with advanced encapsulation materials to prevent short-circuiting in high-heat environments.
• Rapid Response Actuation: Provides consistent electromagnetic force to ensure clean plunger seating and leak-proof operation.
• System Durability: Resists mechanical vibration and electrical surges common in industrial compressor and boiler setups.

Common Technical Questions

Does this coil include the DIN connector plug?
The HS3YN02 is the coil only; if the previous connector shows signs of carbon tracking or heat damage, a separate DIN 43650 Form A plug should be sourced for a secure seal.

Can this coil be used on DC circuits?
No, this is specifically rectified for 120V AC. Using this on a DC circuit will lead to improper pull-force and eventual coil burnout due to lack of inductive reactance.

How do I verify if my S3 series valve body is compatible?
Confirm that your valve body utilizes the Y-type operator. The HS3 designations are specifically matched to the armature diameter and stroke length of GC Valves' standard S3 frames.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
