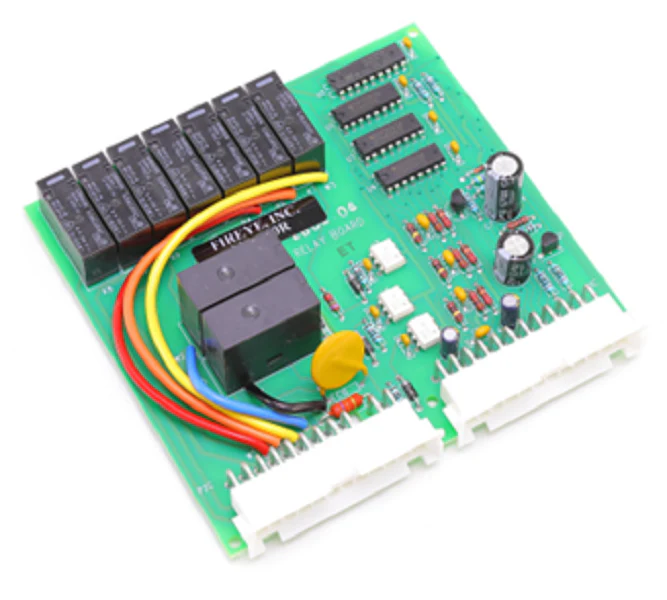

Fireye MB-600R Relay
The Fireye MB-600R Relay is a critical replacement relay module designed specifically for the Fireye Multi-Flame (MB-600S Series) burner management system. This industrial flame safeguard component is engineered to provide reliable switching for high-current loads, including gas valves, oil burners, and ignition coils in multi-burner configurations. Operating on a 120V AC power supply, the MB-600R is mounted directly in the first position on the motherboard, ensuring seamless integration with the system's logic and power modules to maintain sequence control for up to 20 individual burners.
As a veteran-grade combustion control relay, the MB-600R features a rugged design capable of withstanding the high-demand environments typical of industrial ovens and furnaces. It works in tandem with the MB-600M motherboard and MB-600L logic module to perform essential flame monitoring and safety interlock functions. For technicians troubleshooting multi-burner setups, this module is the go-to component for resolving issues related to pilot valve or main fuel valve actuation failure within the original Fireye MB-600S control assembly.
Key Benefits- Specifically engineered for industrial process burner coordination within the Multi-Flame system architecture.
- Provides robust power switching for ignition coils and pilot valves to ensure reliable startup sequences.
- Ruggedized construction maintains operational integrity in high-temperature boiler room environments.
- Plug-and-play compatibility with standard Fireye MB series motherboards for reduced downtime during maintenance.
- Essential component for localized troubleshooting and flame failure diagnostic accuracy.
Where is the MB-600R located on the motherboard?
The MB-600R relay module is typically installed in the first slot on the left side of the motherboard, located closest to the output terminals for direct control of peripheral devices.
Can this relay replace the logic or power supply modules?
No, the MB-600R is specifically the relay board for output control. It must be used alongside the MB-600L (Logic) and MB-600P (Power) modules for the system to function.
Is the MB-600R compatible with expansion boards?
Yes, it functions within the main control unit that interrogates MB-604E or MB-608E expansion boards to manage expanded burner configurations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
