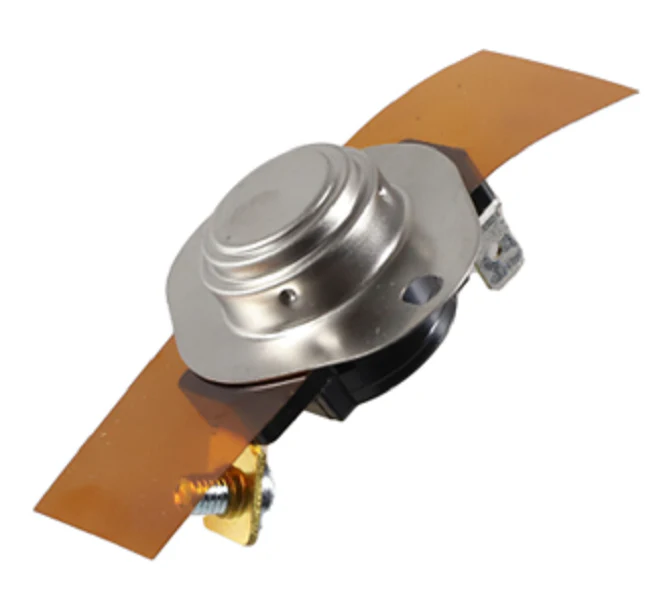

Carrier HH680368 Limit Switch
When you're dealing with a furnace that keeps tripping or a blower motor that won't shut down, the Carrier HH680368 Limit Switch is a primary diagnostic point. This genuine OEM furnace limit switch is a critical safety component designed specifically for Carrier, Bryant, and Payne heating systems. As an L200F limit switch, it is calibrated to monitor internal plenum temperatures and will break the electrical circuit to the burner if levels exceed the 200°F threshold. This mechanical operation ensures the heat exchanger is protected from thermal stress and prevents unsafe operating conditions. Replacing a faulty HH680368 limit switch helps resolve "no heat" calls where the high-limit circuit has opened or failed to reset. The compact, durable design allows for a direct fit in various furnace configurations, maintaining the HVAC system safety parameters specified by the manufacturer. For seasoned contractors, this 200-degree limit switch is a standard truck-stock item for restoring reliable furnace performance during peak heating season.
Key Benefits for Technicians:- Precise Thermal Protection: Engineered as a fixed-limit control that opens at exactly 200°F to prevent equipment overheating.
- Direct OEM Compatibility: Ensures a perfect fit and proper electrical termination for Carrier furnace repair without modifications.
- Enhanced System Safety: Acts as a failsafe to stop power supply to the heating element when airflow is restricted or temperatures spike.
- Reliable Mechanical Sensing: Features a spring-loaded mechanism for consistent temperature detection and circuit interruption.
What causes a Carrier HH680368 limit switch to trip repeatedly?
Repeated tripping is often caused by restricted airflow, such as a clogged air filter, blocked return ducts, or a failing blower motor. If the switch does not reset after the unit cools, the internal bimetal disc may be fatigued, requiring a replacement HH680368.
Is the HH680368 a manual or automatic reset switch?
The Carrier HH680368 is typically an automatic reset limit switch, meaning it should close the circuit once the furnace temperature drops below its specified differential. If it remains open, technical testing of the L200F safety switch continuity is required.
Can I use an L200F switch from another brand?
While the 200°F rating is standard, using a genuine Carrier HH680368 is recommended to ensure the mounting plate dimensions and probe length match the original HVAC technical specifications for accurate sensing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
