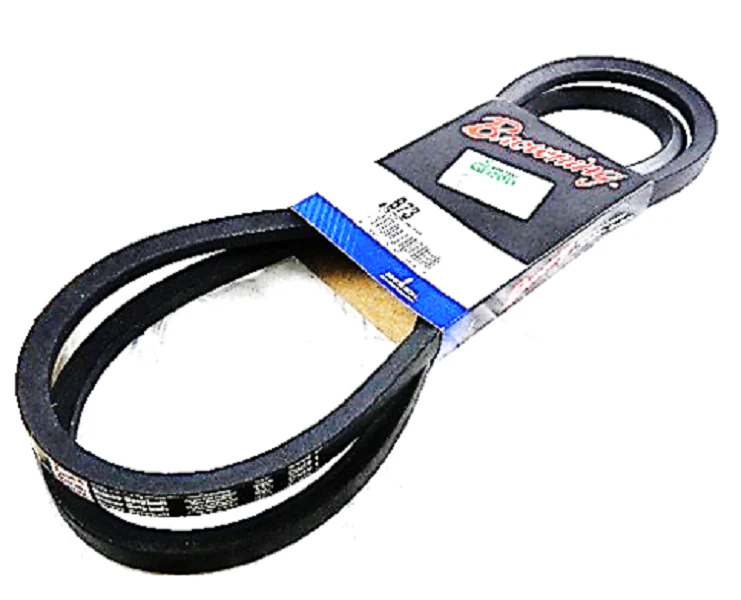

Browning B73 Belt
Experienced contractors know that drive reliability is non-negotiable in industrial HVACR systems. The Browning B73 Belt is a heavy-duty wrapped V-belt engineered specifically for high-demand applications including fan drives, blowers, and air handling units. Featuring a B section profile with a 21/32" top width and a 7/16" thickness, this Super Gripbelt delivers consistent tension and superior power transfer. The 76-inch outside diameter (OD) and 74.8-inch pitch length ensure precise fitment within Browning pulleys and sheaves, adhering to strict RMA standards. Constructed with synthetic fiber tensile cords and a neoprene compound, the B73 belt provides excellent resistance to heat and oil, preventing premature elongation and glazing. The "Code 1" matching system guarantees tight tolerances, making this B73 V-belt ideal for multi-belt drive configurations where uniform load distribution is critical for motor longevity and vibration reduction.
- Code 1 Match System: Ensures all belts of the same size meet tolerances tighter than RMA standards for balanced multi-groove drives.
- Neoprene Compound: Provides essential core protection against oil and thermal degradation in high-temperature mechanical rooms.
- Wrapped Construction: Features a single fabric wrap that allows for greater flexibility and better tolerance for slight sheave misalignment.
- High-Tensile Cords: Minimizes stretch and the need for frequent re-tensioning after the initial break-in period.
Common Questions
What is the difference between a B73 and a BX73 belt?
The B73 is a wrapped belt designed for smooth operation and tolerance to debris, while the BX73 is a cogged (notched) belt designed for higher heat dissipation and smaller sheave diameters.
Can I use a B73 belt on an A-section sheave?
No. A "B" section belt has a 21/32" top width and will not sit properly in the narrower 1/2" groove of an A-section sheave, leading to rapid wear and drive failure.
How do I verify the length if the label is worn off?
A B-series belt's outside length is typically the part number (73) plus 3 inches, equaling 76 inches for the B73. Always measure the pitch length for precise replacement.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
