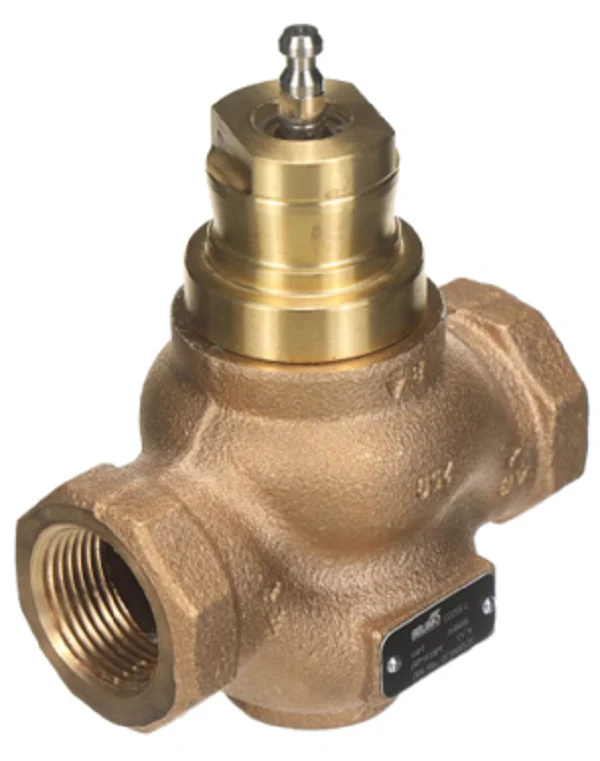

Belimo G225S-L Valve
The Belimo G225S-L Valve is a rugged 1-inch NPT 2-way globe valve engineered for precision control in demanding HVACR applications. Designed with a bronze body and high-grade stainless steel trim, this valve is purpose-built to handle chilled water, hot water (up to 60% glycol), and low-to-high pressure steam environments. It features a 14 Cv rating with a modified equal percentage flow characteristic, ensuring stable modulating control even under variable load conditions. Rated for ANSI Class 250, the G225S-L supports a body pressure rating of up to 400 psi at temperatures below 150°F and can manage steam inlet pressures up to 100 psi.
For technicians, the stem up to open configuration and ANSI Class VI leakage rating provide reliable shut-off and long-term performance. This valve is compatible with various Belimo actuators, including the LVB(X) and LF series, making it a versatile choice for air handling units and unit ventilators. The 316 stainless steel plug and seat offer superior resistance to wire drawing and erosion common in steam service.
Key Benefits- Extreme Durability: Stainless steel trim and 316 stainless steel seat/plug provide enhanced longevity in high-temperature steam applications.
- Precise Flow Control: 100:1 rangeability and modified equal percentage delivery ensure accurate building automation system (BAS) integration.
- High Pressure Resilience: ANSI Class 250 construction handles systems up to 400 psi (water) or 100 psi (steam) with ease.
- Tight Shut-off: Achieves ANSI Class VI leakage rating, reducing energy waste and preventing "ghost" heating or cooling.
- Field Serviceable: Available repack kits allow for spindle seal maintenance without full valve replacement.
What is the maximum fluid temperature the G225S-L can handle?
This valve is rated for a fluid temperature range of 20°F to 338°F (-7°C to 170°C), making it suitable for both chilled water and saturated steam.
Which actuators are compatible with this 1-inch globe valve?
The valve is typically paired with Belimo LV or LF series actuators. Always verify the required close-off pressure of your specific application when selecting the actuator.
Can the G225S-L be used in steam applications?
Yes, it is specifically designed for steam service with a maximum inlet pressure of 100 psi, provided the appropriate high-temp actuator and linkage are utilized.
