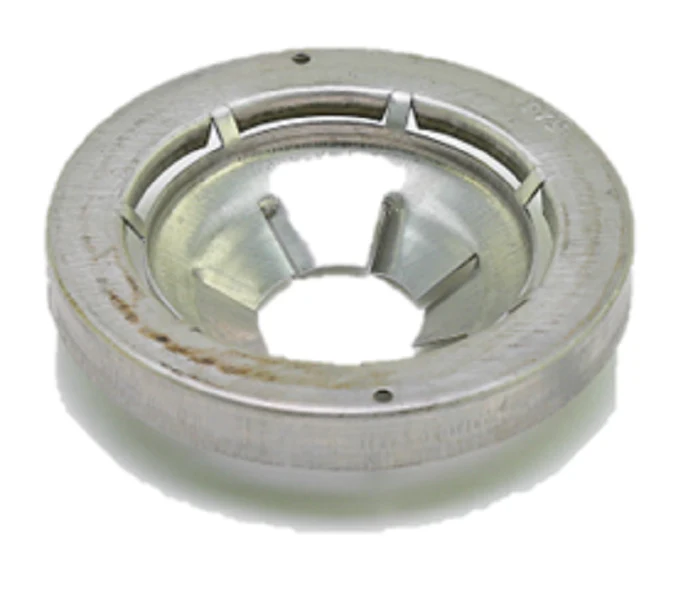

Beckett Igniter F4 Head/Heat Shield
Optimizing combustion efficiency in Beckett AF and AFG series oil burners starts with a high-integrity Beckett F4 burner head. This 0.85/1.35 GPH flame retention head is engineered to produce a stable, high-static air pattern, ensuring complete fuel atomization and reducing soot buildup in the heat exchanger. As a critical Beckett oil burner replacement part, the F4 assembly includes an integrated ceramic heat shield designed to refract intense combustion heat away from the air tube, preventing early component burn-off and structural deformation.
For service technicians performing an annual teardown or a Beckett burner head replacement, this component is indispensable for maintaining the correct "Z" dimension and air tube combination (ATC). The Beckett 0.85-1.35 GPH head is specifically tuned for mid-range firing rates, providing the necessary turbulence for consistent light-offs and smooth operation. Utilizing a flame retention head with heat shield significantly improves the longevity of the nozzle line assembly, particularly in high-demand residential and light commercial dry-base boiler applications where thermal stress is a constant factor.
Key Benefits for the Contractor:- Enhanced Combustion Stability: The F4 design maximizes static pressure for a cleaner, more efficient flame at 0.85 to 1.35 GPH.
- Thermal Protection: Integrated burner head heat shield prevents air tube warping and protects electrodes from excessive radiant heat.
- Universal Compatibility: Direct OEM replacement for Beckett AFG series burners, maintaining factory-specified performance levels.
- Robust Construction: Built to withstand high-temperature environments, reducing the frequency of emergency service calls for "melted" heads.
- What causes a Beckett burner head to melt or burn off? Usually caused by improper "Z" dimension settings, excessive chamber draft, or lack of a proper heat shield in dry-base units. Replacing the assembly with a Beckett F4 head helps mitigate these issues.
- Can I use an F4 head for a 0.75 GPH nozzle? Generally, an F3 head is recommended for rates below 0.85 GPH. Using an F4 outside its specified 0.85-1.35 range may lead to poor air-fuel mixing and high CO levels.
- Does this include the mounting screws? This is the replacement head and shield assembly; always verify existing hardware or order a gasket kit if the mounting surface is compromised.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
