Bard 8105-032 Motor

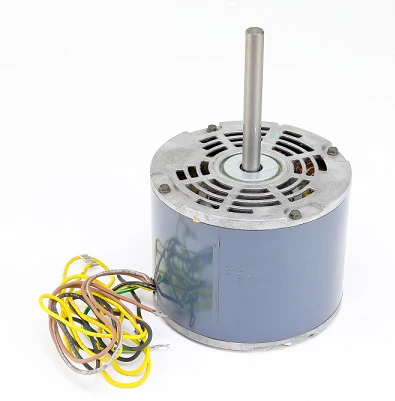

The Bard 8105-032 Motor is a direct-drive, permanent split capacitor (PSC) blower motor designed for specific horizontal and vertical terminal air conditioner (HTPV/VTPV) and wall-mount units. This 1/3 HP induction motor operates on 208-230V single-phase power at a rated speed of 1075 RPM. Engineered for continuous air movement, it features a 48-frame diameter and uses high-grade Class B insulation to manage thermal rise during heavy duty cycles. When replacing an OEM Bard ventilation motor, this component ensures the static pressure requirements of the blower wheel are met, maintaining the intended CFM output and system efficiency. It is a critical replacement for restoring airflow in Bard HVAC systems where the original motor has suffered from bearing failure or winding degradation. Proper installation requires verifying the run capacitor specifications to ensure optimal torque and amperage draw during operation.
Key Benefits:
- OEM Compatibility: Precision-matched for Bard 8105-032 specifications to ensure drop-in fitment without bracket modification.
- Multi-Voltage Operation: Rated for both 208V and 230V applications, providing flexibility for various commercial field voltages.
- Reliable Airflow: The 1075 RPM rating maintains the necessary static pressure for consistent climate control in wall-mount heat pumps.
- Durable Construction: Built with high-quality bearings and robust internal windings for long-term reliability in demanding HVACR environments.
Common Questions:
What are the wiring requirements for the Bard 8105-032?
This motor typically interfaces with the control board via a standard wire harness or terminal block; always refer to the specific unit wiring diagram to ensure proper lead placement for speed taps and capacitor connections.
Does this motor require a specific capacitor?
Yes, as a PSC motor, it must be paired with the MFD rating specified on the motor nameplate to prevent overheating and ensure proper starting torque.
Can this motor replace a higher HP rating?
No, you should match the 1/3 HP rating exactly to prevent overloading the circuit or under-driving the blower assembly.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $324.57
-65%$324.57
$113.60Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Bard 8105-032 Motor is a direct-drive, permanent split capacitor (PSC) blower motor designed for specific horizontal and vertical terminal air conditioner (HTPV/VTPV) and wall-mount units. This 1/3 HP induction motor operates on 208-230V single-phase power at a rated speed of 1075 RPM. Engineered for continuous air movement, it features a 48-frame diameter and uses high-grade Class B insulation to manage thermal rise during heavy duty cycles. When replacing an OEM Bard ventilation motor, this component ensures the static pressure requirements of the blower wheel are met, maintaining the intended CFM output and system efficiency. It is a critical replacement for restoring airflow in Bard HVAC systems where the original motor has suffered from bearing failure or winding degradation. Proper installation requires verifying the run capacitor specifications to ensure optimal torque and amperage draw during operation.
Key Benefits:
- OEM Compatibility: Precision-matched for Bard 8105-032 specifications to ensure drop-in fitment without bracket modification.
- Multi-Voltage Operation: Rated for both 208V and 230V applications, providing flexibility for various commercial field voltages.
- Reliable Airflow: The 1075 RPM rating maintains the necessary static pressure for consistent climate control in wall-mount heat pumps.
- Durable Construction: Built with high-quality bearings and robust internal windings for long-term reliability in demanding HVACR environments.
Common Questions:
What are the wiring requirements for the Bard 8105-032?
This motor typically interfaces with the control board via a standard wire harness or terminal block; always refer to the specific unit wiring diagram to ensure proper lead placement for speed taps and capacitor connections.
Does this motor require a specific capacitor?
Yes, as a PSC motor, it must be paired with the MFD rating specified on the motor nameplate to prevent overheating and ensure proper starting torque.
Can this motor replace a higher HP rating?
No, you should match the 1/3 HP rating exactly to prevent overloading the circuit or under-driving the blower assembly.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
