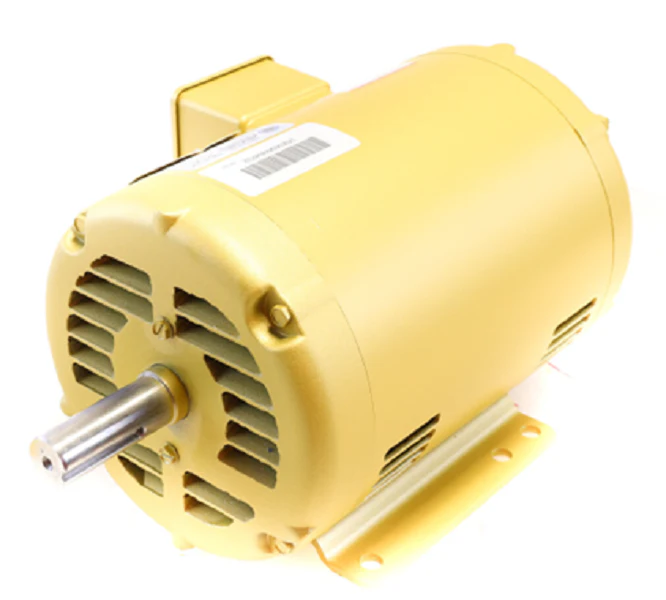

Baldor Motor EM3157T-G Motor
The Baldor-Reliance EM3157T-G is a high-performance 2 HP three-phase motor engineered for demanding industrial and HVACR applications. Operating at 1725 RPM with a 145T frame, this NEMA Premium Efficient motor is built for continuous duty (Type S1) on 208-230/460V systems. Featuring an Open Drip Proof (ODP) enclosure, it provides optimal airflow for temperature regulation in clean, dry indoor environments. The inclusion of AEGIS shaft grounding rings makes this unit ideal for use with Variable Frequency Drives (VFD), as it effectively mitigates common-mode shaft voltages to prevent premature bearing failure. With a 1.15 service factor and Class F insulation, this motor maintains stable torque and efficiency under varying thermal loads.
- Shaft Grounding Technology: Pre-installed internal AEGIS bearing protection ensures longevity when integrated with inverter-driven systems.
- Premium Efficiency: Meets NEMA MG 1 standards, reducing operational energy costs and heat dissipation.
- Durable Construction: Heavy-gauge steel frame and ball bearing design support high radial loads in belt-drive or direct-drive configurations.
- Versatile Wiring: Multi-voltage 208-230/460V capability allows for flexible field installation across different power supplies.
Common Questions
Can I use the EM3157T-G with a VFD?
Yes, this motor is specifically designed for inverter duty and includes a factory-installed shaft grounding ring to protect bearings from electrical discharge damage.
What is the frame size and shaft diameter?
The motor uses a standard 145T frame with a 7/8-inch shaft diameter, making it a drop-in replacement for most general-purpose 2 HP industrial applications.
Is this motor suitable for outdoor use?
This is an ODP (Open Drip Proof) motor intended for indoor use where moisture and debris are minimal. For outdoor or washdown environments, a TEFC-rated motor is recommended.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $2,261.64
-65%$2,261.64
$791.57Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Baldor-Reliance EM3157T-G is a high-performance 2 HP three-phase motor engineered for demanding industrial and HVACR applications. Operating at 1725 RPM with a 145T frame, this NEMA Premium Efficient motor is built for continuous duty (Type S1) on 208-230/460V systems. Featuring an Open Drip Proof (ODP) enclosure, it provides optimal airflow for temperature regulation in clean, dry indoor environments. The inclusion of AEGIS shaft grounding rings makes this unit ideal for use with Variable Frequency Drives (VFD), as it effectively mitigates common-mode shaft voltages to prevent premature bearing failure. With a 1.15 service factor and Class F insulation, this motor maintains stable torque and efficiency under varying thermal loads.
- Shaft Grounding Technology: Pre-installed internal AEGIS bearing protection ensures longevity when integrated with inverter-driven systems.
- Premium Efficiency: Meets NEMA MG 1 standards, reducing operational energy costs and heat dissipation.
- Durable Construction: Heavy-gauge steel frame and ball bearing design support high radial loads in belt-drive or direct-drive configurations.
- Versatile Wiring: Multi-voltage 208-230/460V capability allows for flexible field installation across different power supplies.
Common Questions
Can I use the EM3157T-G with a VFD?
Yes, this motor is specifically designed for inverter duty and includes a factory-installed shaft grounding ring to protect bearings from electrical discharge damage.
What is the frame size and shaft diameter?
The motor uses a standard 145T frame with a 7/8-inch shaft diameter, making it a drop-in replacement for most general-purpose 2 HP industrial applications.
Is this motor suitable for outdoor use?
This is an ODP (Open Drip Proof) motor intended for indoor use where moisture and debris are minimal. For outdoor or washdown environments, a TEFC-rated motor is recommended.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
