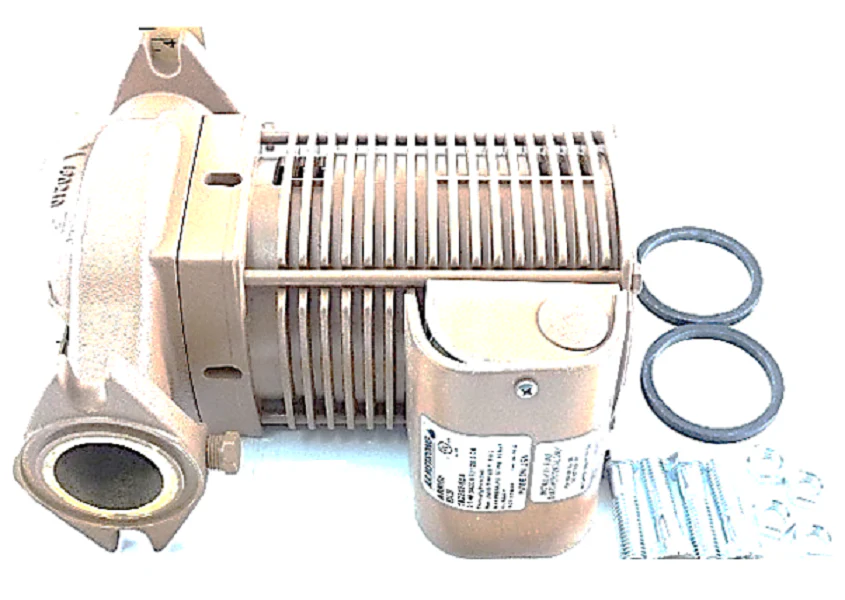

Armstrong Fluid Technology 182212-654 Pump

The Armstrong Fluid Technology 182212-654 (Model E24.2B) is a high-performance lead-free bronze circulator pump designed for efficiency and durability in potable water systems and hydronic applications. This 2/5 HP circulator features a single phase, 120Vac motor operating at 3400 RPM, providing reliable flow for large residential and light commercial settings. As a direct replacement for 180210-654, this unit incorporates a larger stainless steel shaft and permanently lubricated bearings to ensure maintenance-free operation. The advanced dry motor design and silicon carbide mechanical seal enhance wire-to-water efficiency, reducing energy consumption in hot water recirculation and geothermal systems. Its compact in-line booster pump configuration allows for versatile installation with 1", 1 1/4", or 1 1/2" flanges. Built to resist corrosion, the 182212-654 E24.2B is engineered for longevity in demanding environments where standard cast iron pumps might fail.

Key Benefits:

• Maintenance-Free Reliability: Features permanently lubricated bearings and a refined dry motor design that eliminates the need for periodic oiling.
• Superior Corrosion Resistance: The all-bronze construction is ideal for domestic open-loop systems and potable water recirculation.
• High Dynamic Performance: Delivers up to 60 feet of head and can reach flow rates up to 140 GPM for robust system circulation.
• Simplified Installation: Compact flange-to-flange dimensions ensure a seamless fit in tight mechanical spaces without extensive repiping.
• Enhanced Seal Protection: Equipped with a bellows-style mechanical seal and a water slinger to protect electrical components from intrusion.

Common Questions:

Is the 182212-654 compatible with older 180210-654 models?
Yes, the 182212-654 is the official direct replacement for the discontinued 180210-654, offering updated efficiency and improved seal technology.

Can this pump be used for domestic hot water?
Yes, the lead-free bronze housing makes it suitable for potable drinking water and domestic hot water recirculation systems.

Are flanges included with the pump?
No, flanges for 1", 1 1/4", or 1 1/2" connections must be purchased separately to match your specific piping requirements.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
